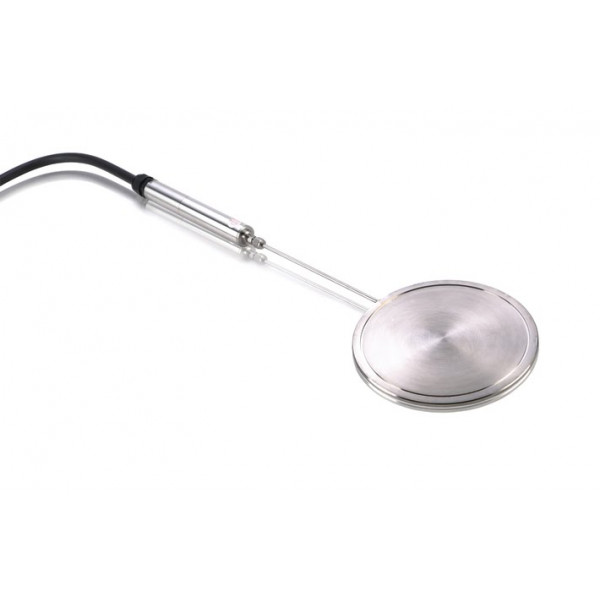

P6 : VIBRATING WIRE CONCRETE STRESS CELL

Ranges (kPa) 300, 500, 700, 1000, 1500, 2000, 3000, 4000, 6000, 10,000, 15,000
Resolution 0.025% full scale
Frequency range 1700 – 2800Hz
Accuracy 0.1% full scale
Linearity 0.1% full scale
Temperature Range -20 to 80°C
Overload 150% full scale
Material Stainless Steel
Excitation Method Pluck or sweep

Log in to your account to display prices
account_circleSend to a friend
P6 :  VIBRATING WIRE CONCRETE STRESS CELL

P6 : VIBRATING WIRE CONCRETE STRESS CELL

Ranges (kPa) 300, 500, 700, 1000, 1500, 2000, 3000, 4000, 6000, 10,000, 15,000
Resolution 0.025% full scale
Frequency range 1700 – 2800Hz
Accuracy 0.1% full scale
Linearity 0.1% full scale
Temperature Range -20 to 80°C
Overload 150% full scale
Material Stainless Steel
Excitation Method Pluck or sweep



Applications

> <

Vibrating Wire Pressure Cells measure total stresses in soils and is a combination of effective stress and pore-water pressures. They are normally used to validate design assumptions and to give adequate warning of soil pressures in excess of those designed to be exerted by a structure.

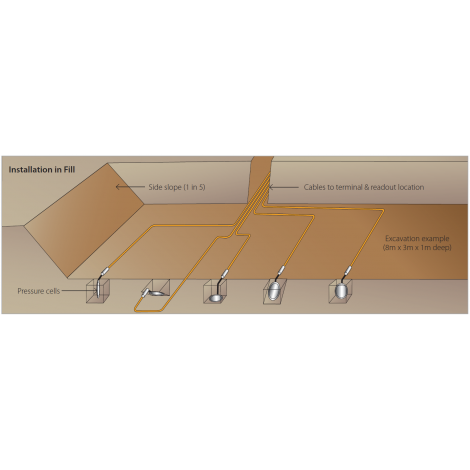

The Vibrating Wire Pressure Cell is used to measure total pressure, particularly in earth or rockfill structures.

The cells are normally used to validate design assumptions and to give adequate warning of soil pressures in excess of those which a structure is designed to withstand.
