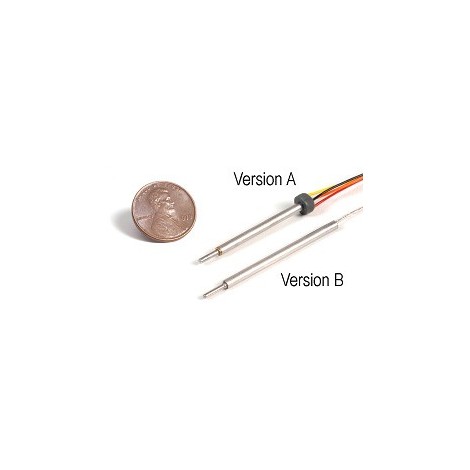

SM-LVDT-SP: Micro-miniature spring-loaded LVDT

  • Micro-miniature spring-loaded LVDT  designed for high resolution position measurement in tight places (2.3 mm Diameter).
    Measuring range: +/-
     1, 2.5, 5mm.
  • Input voltage: 2.3 Vrms max
  • Linearity deviation error: 2%.
  • Input Frequency: 5 kHz (nominal)
  • Protection against electromagnetic and electrostatic shielding.



Log in to your account to display prices
account_circleSend to a friend
SM-LVDT-SP: Micro-miniature spring-loaded LVDT

SM-LVDT-SP: Micro-miniature spring-loaded LVDT

  • Micro-miniature spring-loaded LVDT  designed for high resolution position measurement in tight places (2.3 mm Diameter).
    Measuring range: +/-
     1, 2.5, 5mm.
  • Input voltage: 2.3 Vrms max
  • Linearity deviation error: 2%.
  • Input Frequency: 5 kHz (nominal)
  • Protection against electromagnetic and electrostatic shielding.





This micro-miniature SM-LVDT-SP is designed for high resolution position measurement in tight places. It is layer wound on metal coil-form provides excellent stability, while ferromagnetic housing takes care of the electromagnetic and electrostatic shielding.
With his 2.3 mm Diameter, frequently use in several applications.
