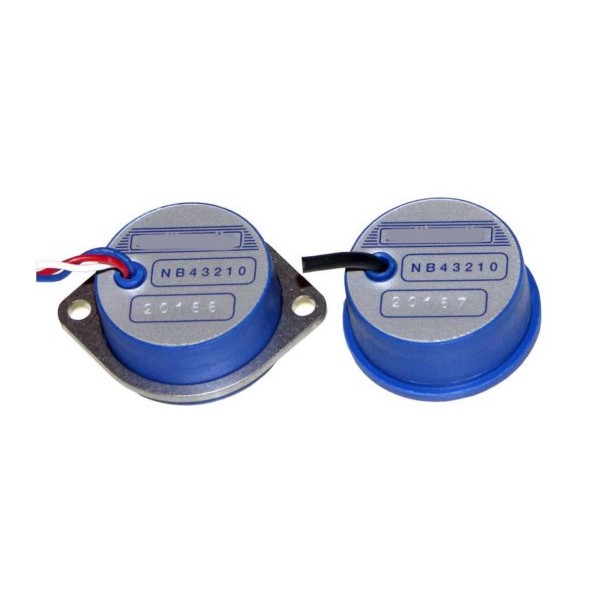

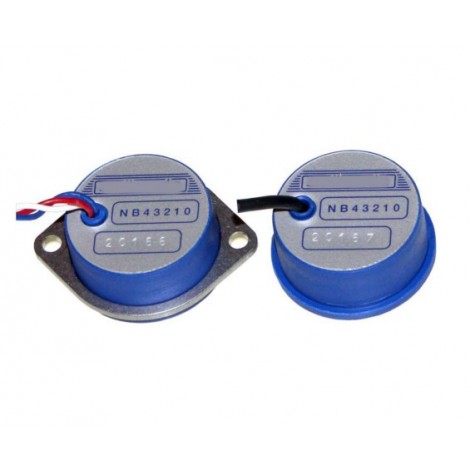

SM-N: Miniature inclinometer - Ouput mV/°

  • Capacitive liquid based inclinometers with integrated sensor electronics.
  • Measuring range ±10, ±30, ±70°.
  • Resolution < 0.01 %.
  • Degree of protection  IP 65.
  • High long-term stability.
  • High accuracy and signal-to-noise.
Log in to your account to display prices
account_circleSend to a friend
SM-N: Miniature inclinometer - Ouput mV/°

SM-N: Miniature inclinometer - Ouput mV/°

  • Capacitive liquid based inclinometers with integrated sensor electronics.
  • Measuring range ±10, ±30, ±70°.
  • Resolution < 0.01 %.
  • Degree of protection  IP 65.
  • High long-term stability.
  • High accuracy and signal-to-noise.



The SM-N  are capacitive, liquid based inclinometers with integrated sensor electronics. The sensor electronics require only minimal power and are in conjunction with the capacitive primary transformer characterized by high accuracy, a high signal-to-noise ratio and high long-term stability.

The measurement technique enables a linear relationship between the angle to be measured and the output signal. The determined angle is independent of the local gravitational acceleration, that means that no matter where the measurement is being taken.

Inclinometers SM-N are suitable for applications requiring a small, light sensor for measurement of relatively large inclinations. Typical areas of application include measuring instruments and inspection systems, scientific devices,  automation and safety engineering, vehicles, medical and communications equipment as well as navigational systems.

SM-N
