W16 KOMPAKT VIBRATING WIRE PIEZOMETER

Ranges kPa 350 | 500 | 700 | 1000
Material Stainless Steel / PVC
Accuracy ±0.5% full scale
Linearity ±0.5% full scale
Resolution1 0.025% full scale (minimum)
Over range 200% of full scale
Diameter 19mm
Weight (without cable) 150g
Temperature range -10 to +60°C

Log in to your account to display prices
account_circleSend to a friend
W16 KOMPAKT VIBRATING WIRE PIEZOMETER

W16 KOMPAKT VIBRATING WIRE PIEZOMETER

Ranges kPa 350 | 500 | 700 | 1000
Material Stainless Steel / PVC
Accuracy ±0.5% full scale
Linearity ±0.5% full scale
Resolution1 0.025% full scale (minimum)
Over range 200% of full scale
Diameter 19mm
Weight (without cable) 150g
Temperature range -10 to +60°C

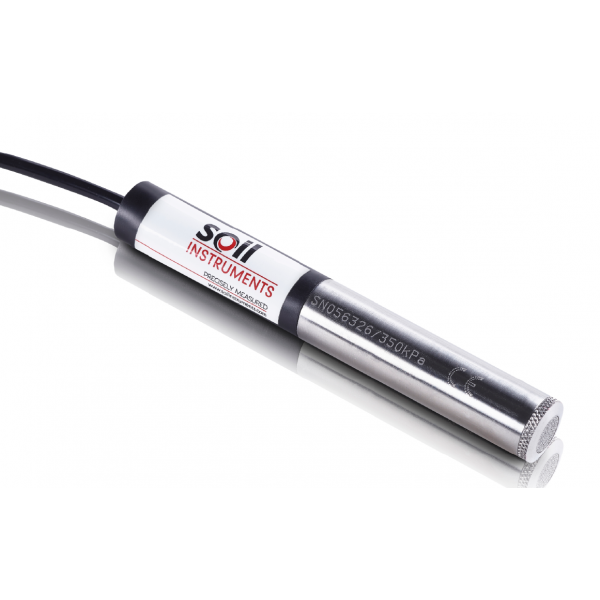

The w16 compact Vibrating Wire Piezometer provides accurate measurement of pore water pressures.
The transducer is designed to handle pressure ranges from 0 to 1000 kPa.
It incorporates an over voltage surge arrestor that offers protection from a lightning strike.
The piezometer is fitted with a low air entry stainless steel sintered filter.

An integral thermistor for temperature monitoring is included.
