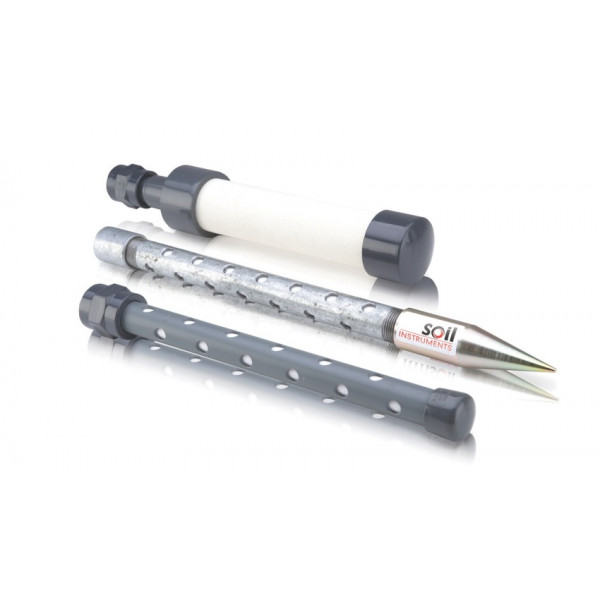

W1 STANDPIPE PIEZOMETER

Porous plastic or ceramic filter tip
Choice of PVC or galvanized steel riser pipe
Drive-in tip available
Used when monitoring piezometric water levels in vertical boreholes
Can measure artesian pressures using a Bourdon Gauge readout

Log in to your account to display prices
account_circleSend to a friend
W1 STANDPIPE PIEZOMETER

W1 STANDPIPE PIEZOMETER

Porous plastic or ceramic filter tip
Choice of PVC or galvanized steel riser pipe
Drive-in tip available
Used when monitoring piezometric water levels in vertical boreholes
Can measure artesian pressures using a Bourdon Gauge readout



Standpipe Piezometers offer a simple and economic method for measuring water pressures in soil and rock.

The Standpipe Piezometer (also known as a Casagrande Piezometer) is used to monitor piezometric water levels in vertical boreholes.

The Standpipe Piezometer typically comprises two parts: at its lowest point is a porous piezometer tip; connected to the tip is a riser pipe which continues upwards out of the top of the borehole.

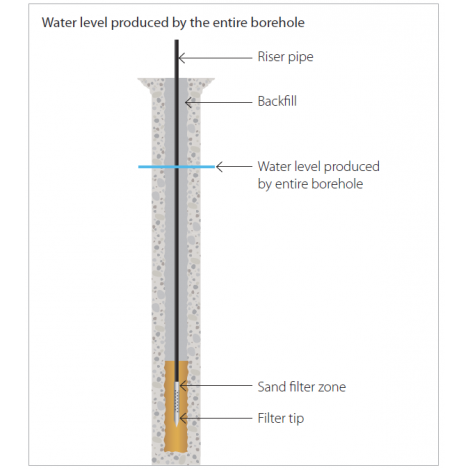

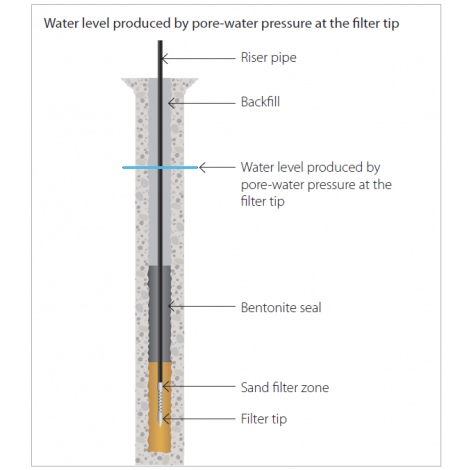

To measure the borehole water level, the filter tip zone is packed with sand and then backfilled above. To isolate pore water pressure at the filter tip, a bentonite seal is required between the sand filter zone and the backfill.

Alternative filter tip types may be driven or pushed into soft soil, and different tip designs are available to suit various types of ground.
